ASUS PRIME B760-PLUS ATX Motherboard

ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
Save: 1,960৳
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
ASUS PRIME B760-PLUS ATX Motherboard
0 reviews • Write a review
  • Offer Price: 23,000৳
  • Regular Price: 24,960৳
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME B760-PLUS

Key Features

  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
  • Graphics Output: 1x DisplayPort, 1x VGA port, 1x HDMI
  • Features: 3x M.2 slot, Realtek 2.5Gb Ethernet

Payment Options

23,000৳24,960৳

Cash Discount Price

Online / Cash Payment
24,960৳/month

Regular Price: 24,960৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

Expansion Slots
PCI Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
General
Brand ASUS
Model PRIME B760-PLUS
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.) 1 x VGA port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Memory
Maximum Memory 192GB
Slots 4 x DIMM
Supported Memory DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem
Type DDR5
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Ports & Connector
Audio 3 x Audio jacks
Display Port (s) 1x DisplayPort
HDMI 1x HDMI
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
TPM (Trusted Platform Module) 1 x SPI TPM header (14-1pin)
USB (s) Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
VGA (s) 1 x VGA port
Wireless Communication module Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel B760 Chipset
Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Warranty Information
Manufacturing Warranty 03 years

Description

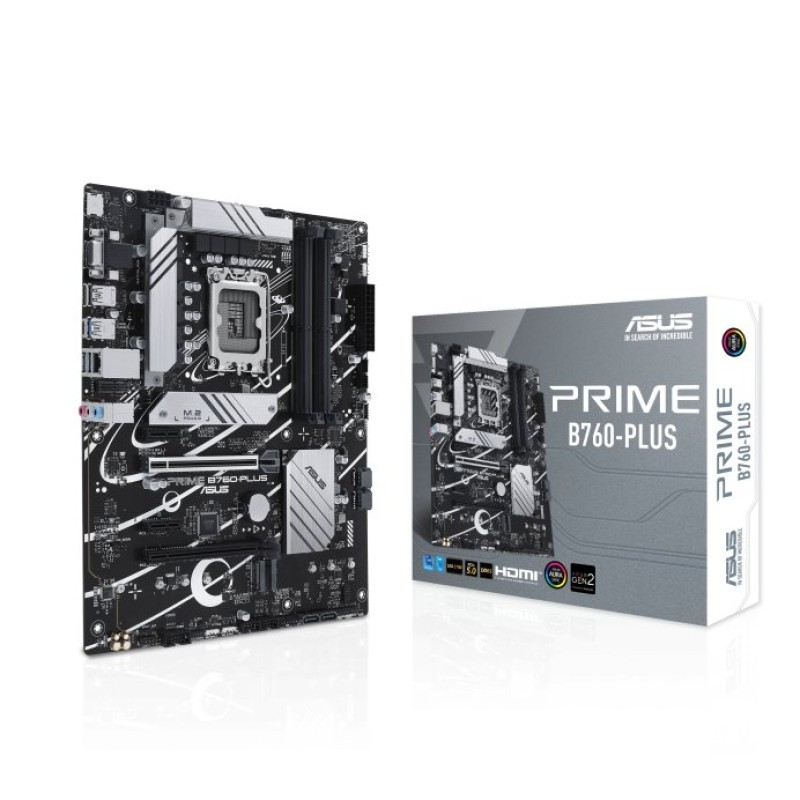

ASUS PRIME B760-PLUS ATX Motherboard

The ASUS PRIME B760-PLUS is a feature-rich ATX motherboard designed to unleash the full potential of 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors with support for the LGA1700 socket. Whether you’re a power user, gamer, or content creator, this board delivers the flexibility, durability, and performance needed for modern computing.

With four dual-channel DDR5 memory slots, the PRIME B760-PLUS allows high-speed RAM configurations and future-proof expandability. Its storage options include three ultra-fast M.2 slots for NVMe SSDs and four SATA III ports, making it ideal for users who need both speed and storage capacity. For graphics and expansion cards, it features 2 x PCIe x16 slots and 1 x PCIe x1 slot, supporting modern GPUs and high-speed peripherals.

USB connectivity is versatile, with USB 2.0 ports available for low-power devices such as keyboards and mice, while high-speed rear I/O options provide broader compatibility for gaming and productivity gear.

 Enhanced Power Design for 14th Gen CPUs

Optimized for next-gen processors, the 12+1+1 dual rail power system, 8+8 pin power connectors, and Core Boost technology work together to deliver stable power even under heavy workloads. Additional features like Digital Power Design, Load-Line Calibration, and Overvoltage Protection ensure the system remains stable and safe during overclocking or intensive computing tasks.

 Premium Cooling & Thermal Management

Stay cool under pressure with an Extended Heatsink Design, M.2 Shield Frozr, and AI-powered cooling controls. The motherboard's thermal architecture is designed for continuous operation, even in demanding scenarios like gaming marathons or content rendering. Features like Fan Control, Frozr AI Cooling, and System Cooling ensure optimal thermal efficiency for long-term reliability.

 High-Quality PCB & Durability Enhancements

The ASUS PRIME B760-PLUS uses a high-grade PCB with 2oz thickened copper layers to handle high-speed data transfer and thermal stress. Additional durability features include double ESD protection around mounting holes and superior heat dissipation pathways, ensuring long-term component safety and system reliability even under overclocking.

Key Features:

  •  Intel 14th / 13th / 12th Gen CPU support (LGA1700)

  •  4 x DDR5 DIMM slots, dual-channel support

  •  3 x M.2 slots & 4 x SATA III ports

  •  2 x PCIe x16, 1 x PCIe x1 for expansion

  •  12+1+1 Power Phase Design with Core Boost

  •  Extended heatsinks, M.2 Shield Frozr, AI Cooling

  •  High-quality PCB with 2oz copper, ESD protection

ASUS PRIME B760-PLUS delivers a solid foundation for gaming rigs and productivity machines alike—powerful, efficient, and ready for the future.

Write a review

Note: HTML is not translated!
Rating
Bad Good

What is the price of ASUS PRIME B760-PLUS ATX Motherboard in Bangladesh?

The latest price of ASUS PRIME B760-PLUS ATX Motherboard in Bangladesh is 23,000৳. You can buy the ASUS PRIME B760-PLUS ATX Motherboard at the best price from our website or visit any of our showrooms.
