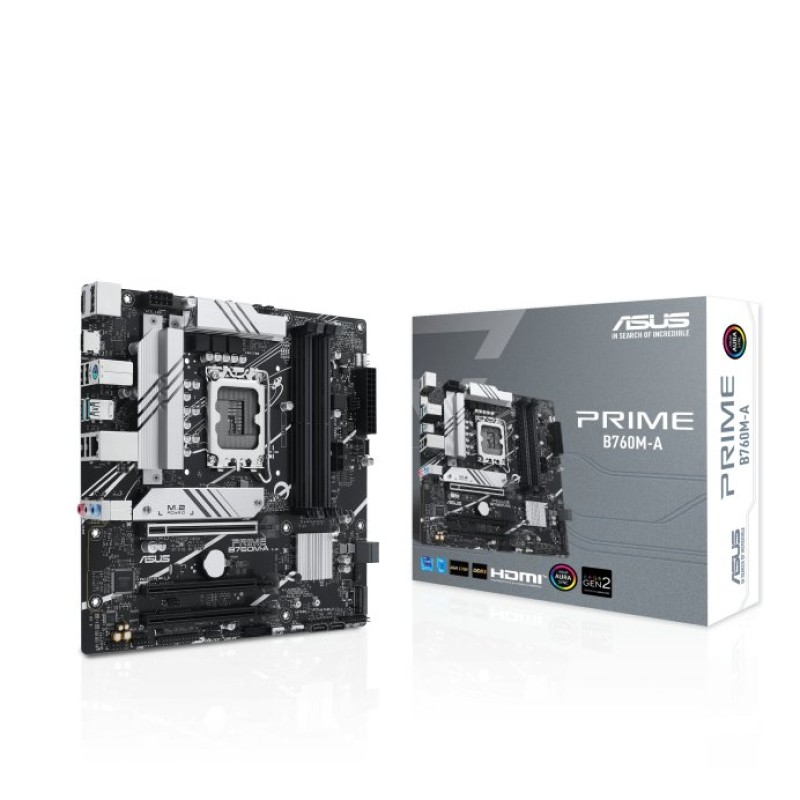

Asus PRIME B760M-A mATX Motherboard

Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Save: 1,530৳
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
Asus PRIME B760M-A mATX Motherboard
0 reviews • Write a review
  • Offer Price: 20,500৳
  • Regular Price: 22,030৳
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME B760M-A

Key Features

  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet

Payment Options

20,500৳22,030৳

Cash Discount Price

Online / Cash Payment
22,030৳/month

Regular Price: 22,030৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

Expansion Slots
M.2 Socket Total supports 2 x M.2 slots
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
General
Brand Asus
Model PRIME B760M-A
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Memory
Maximum Memory Max. 128GB
Slots 4 x DIMM
Supported Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Type DDR5
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Ports & Connector
Audio 3 x Audio jacks
Display Port (s) 1 x DisplayPort
HDMI 2 x HDMI port
Internal I/O Ports Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel B760 Chipset
Form Factor mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Warranty Information
Manufacturing Warranty 03 years warranty

Description

Asus PRIME B760M-A mATX Motherboard

The ASUS PRIME B760M-A is a versatile and high-performance micro-ATX motherboard, designed for Intel 14th, 13th, and 12th Gen processors on the LGA 1700 socket. Whether you're building a powerful workstation or a gaming PC, this motherboard delivers a stable, efficient, and feature-rich platform for modern computing.

Built on the Intel B760 chipset, the board supports PCIe 4.0, ensuring fast data throughput for the latest graphics cards and NVMe SSDs. With two M.2 slots, users can enjoy lightning-fast boot times and file transfers using high-speed PCIe 4.0 NVMe drives. It also offers Realtek 2.5Gb Ethernet for ultra-reliable, high-speed network performance—ideal for content creators, streamers, and gamers alike.

The PRIME B760M-A doesn’t compromise on cooling. Equipped with VRM, M.2, and PCH heatsinks, along with hybrid fan headers and ASUS Fan Xpert 2+, this motherboard ensures efficient thermal control for optimal performance under heavy workloads.

On the connectivity front, the board includes rear USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, and a wide array of additional USB and audio connections, offering excellent support for peripherals and accessories.

Memory performance is enhanced by ASUS OptiMem II and Enhanced Memory Profile II, technologies that improve signal integrity for better memory overclocking and system stability—allowing up to 128GB DDR5 memory support (depending on the model variant).

Adding a stylish touch, the Aura Sync RGB lighting system includes onboard Addressable Gen 2 headers and an Aura RGB header, enabling synchronized lighting effects with compatible components for a cohesive and personalized aesthetic.

Whether you're a gamer, professional, or PC enthusiast, the ASUS PRIME B760M-A delivers powerful performance, strong cooling capabilities, and next-gen connectivity—all in a compact micro-ATX form factor. Now available at SkyLandBD.
