ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
Save: 1,450৳
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard
0 reviews • Write a review
  • Offer Price: 17,000৳
  • Regular Price: 18,450৳
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME H610I-PLUS D4

Key Features

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 3200
  • Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
  • Features: 1 x Realtek 1Gb Ethernet

Payment Options

17,000৳18,450৳

Cash Discount Price

Online / Cash Payment
18,450৳/month

Regular Price: 18,450৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

Expansion Slots
M.2 Socket 1 x M.2 slots
PCI Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
General
Brand ASUS
Model PRIME H610I-PLUS D4
Graphics
Graphics Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz.
Memory
Maximum Memory Max. 64GB
Slots 2x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Type DDR4
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Ports & Connector
Audio 3x Audio jacks
D-Sub (s) 1 x D-Sub
HDMI 1 x HDMI port
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
USB (s) Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel H610 Chipset
Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch (17.02 cm x 17.02 cm)
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Warranty Information
Manufacturing Warranty 03 years warranty

Description

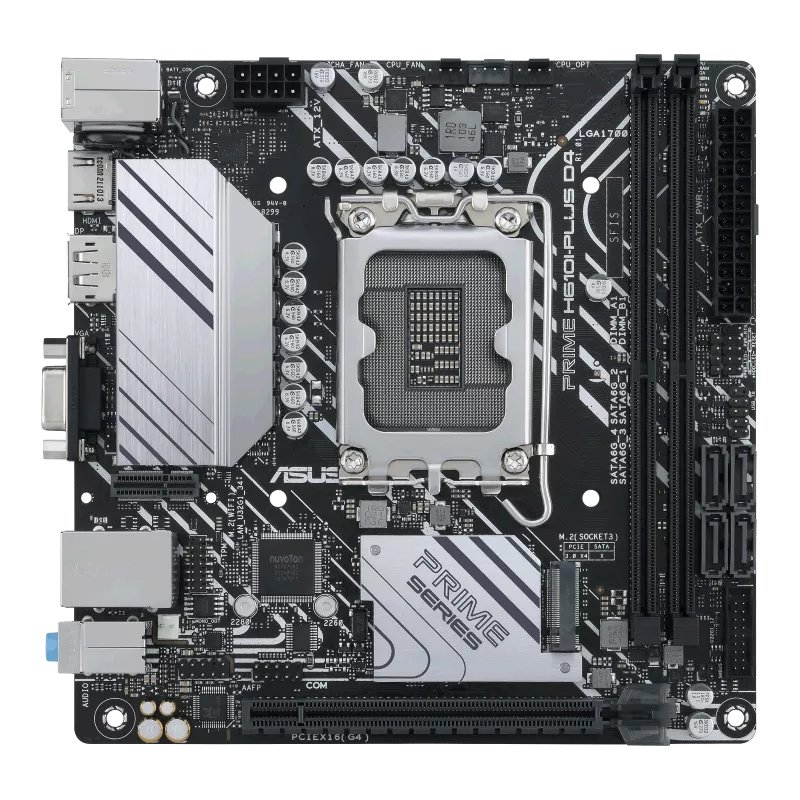

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

The ASUS PRIME H610I-PLUS D4 is a Mini ITX motherboard built on the Intel H610 chipset and supports 14th, 13th, and 12th Gen Intel® Core™ processors via the LGA 1700 socket. Perfect for compact desktops, HTPCs, or workstation setups, this board combines efficiency, stability, and versatility in a small form factor.

Despite its compact size, it delivers excellent power stability with a 5+1+1 DrMOS power stage design, supporting efficient and reliable CPU performance. It includes VRM and PCH heatsinks along with Fan Xpert technology to manage thermals effectively, ensuring smooth operation under load.

On the connectivity side, the motherboard features a 32Gbps M.2 slot for fast NVMe SSDs, Realtek 1Gb Ethernet for stable networking, and USB 3.2 Gen 1 ports for high-speed peripheral support. For display output, it offers flexible options including HDMI, DisplayPort, and D-Sub, making it compatible with a wide range of monitors.

Ideal for industrial or specialized use cases, the board includes COM and mono-out headers with an Amp IC, as well as SATA 6Gbps ports for traditional storage devices. It also features ASUS 5X Protection III, delivering comprehensive hardware protection—such as overvoltage and surge resistance—to ensure long-term system durability.

At SkyLandBD, we recommend the ASUS PRIME H610I-PLUS D4 for users seeking a reliable Mini ITX motherboard that balances compact design with essential features, strong performance, and trusted ASUS durability. It's an excellent foundation for small yet powerful systems.

Write a review

Note: HTML is not translated!
Rating
Bad Good

What is the price of ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh?

The latest price of ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard in Bangladesh is 17,000৳. You can buy the ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard at the best price from our website or visit any of our showrooms.
