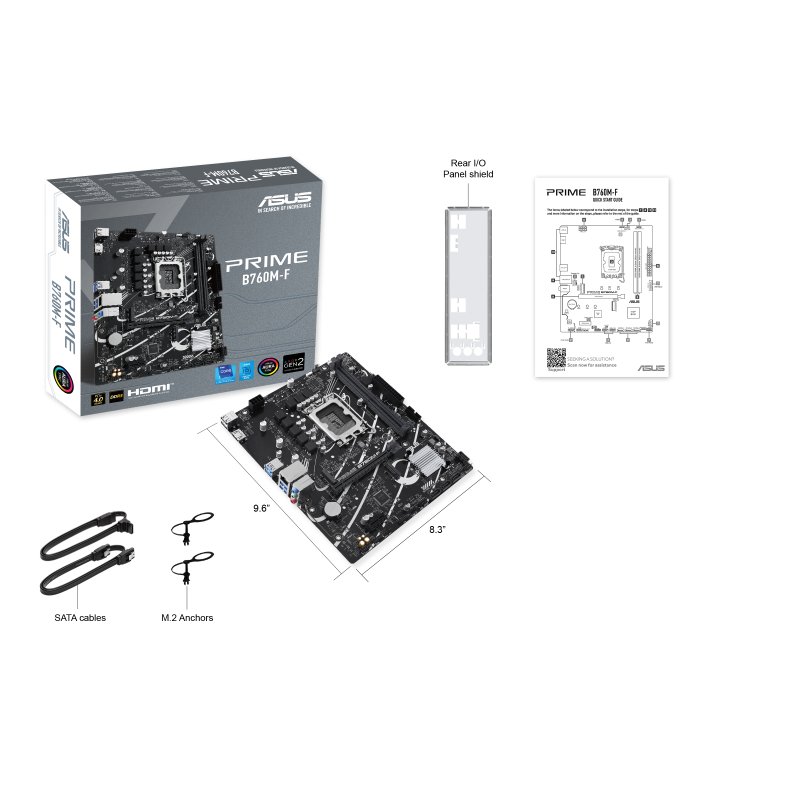

Asus PRIME B760M-F mATX Motherboard

Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Save: 1,250৳
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
0 reviews • Write a review
  • Offer Price: 14,700৳
  • Regular Price: 15,950৳
  • Stock: In Stock
  • Brand: Asus
  • Model: PRIME B760M-F

Key Features

  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI
  • Features: 1 x Realtek 1Gb Ethernet

Payment Options

14,700৳15,950৳

Cash Discount Price

Online / Cash Payment
15,950৳/month

Regular Price: 15,950৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

Connector & Ports
Audio 3 x Audio jacks
HDMI 1x HDMI port
Internal I/O Ports Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
LAN Port (s) 1 x Realtek 1Gb Ethernet port
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
TPM (Trusted Platform Module) 1 x SPI TPM header (14-1pin)
USB (s) Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Expansion Slots
M.2 Socket Total supports 2 x M.2 slots
PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot
General
Brand Asus
Model PRIME B760M-F
Graphics
Graphics ** Supports 4K@30Hz as specified in HDMI 1.4.
Memory
Maximum Memory Max. 96GB
Slots 2 x DIMM
Supported Memory 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module
Type DDR5
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Basic Information
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Chipset Intel B760 Chipset
Form Factor micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Warranty Information
Manufacturing Warranty 03 years warranty

Description

Asus PRIME B760M-F mATX Motherboard

The ASUS PRIME B760M-F is a feature-rich micro-ATX motherboard built to harness the full power of Intel’s 12th, 13th, and 14th Gen processors, making it an excellent choice for gamers, creators, and professionals alike. Powered by the Intel B760 chipset, this board combines compact design with advanced performance capabilities to meet the demands of modern computing.

It supports DDR5 memory, allowing for faster speeds and improved system responsiveness—perfect for multitasking, content creation, and future-proofing your build. Storage and data transfer are lightning-fast, thanks to dual PCIe 4.0 M.2 slots and PCIe 4.0 expansion support, giving you access to next-gen storage and high-speed GPUs.

The PRIME B760M-F ensures smooth online experiences with Realtek 1Gb Ethernet, while thermal performance is managed by an efficient PCH heatsink, hybrid fan headers, and ASUS Fan Xpert 2+, keeping your system cool under pressure.

Aesthetics and personalization are also part of the package. With Aura Sync RGB lighting and onboard addressable Gen 2 headers, you can synchronize lighting effects across compatible components for a visually cohesive setup. For communication, AI-powered two-way noise cancellation effectively filters out background noise during calls or game chats, enhancing your voice clarity.

Whether you're building a powerful AI-focused rig, a compact gaming machine, or a reliable workstation, the ASUS PRIME B760M-F delivers performance, efficiency, and modern features in a compact and affordable package.

Now available at SkyLandBD, this motherboard is ready to be the backbone of your next advanced PC build.

Write a review

Note: HTML is not translated!
Rating
Bad Good

What is the price of Asus PRIME B760M-F mATX Motherboard in Bangladesh?

The latest price of Asus PRIME B760M-F mATX Motherboard in Bangladesh is 14,700৳. You can buy the Asus PRIME B760M-F mATX Motherboard at the best price from our website or visit any of our showrooms.
