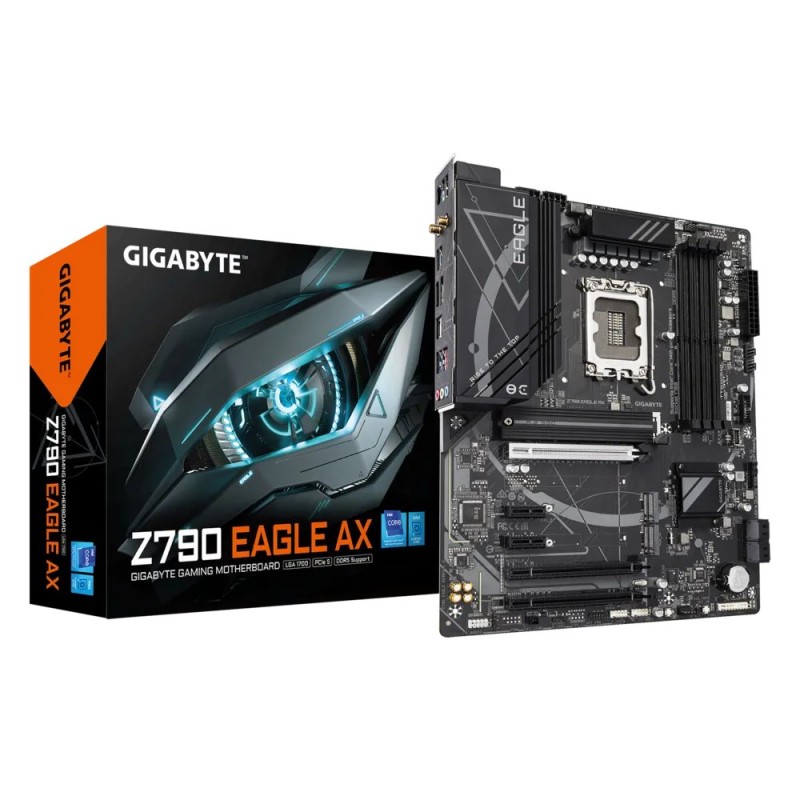

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
Save: 3,980৳
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
0 reviews • Write a review
  • Offer Price: 29,000৳
  • Regular Price: 32,980৳
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: Z790 EAGLE AX

Key Features

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E

Payment Options

29,000৳32,980৳

Cash Discount Price

Online / Cash Payment
32,980৳/month

Regular Price: 32,980৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

General
Brand GIGABYTE
Model Z790 EAGLE AX
Basic Information
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel Z790 Express Chipset
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Expansion Slots
PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Memory
Maximum Memory Up to 192 GB (48 GB single DIMM capacity) of system memory
Slots 4 x DDR5 DIMM sockets
Supported Memory 14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Type DDR5
Others
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Ports & Connector
Audio 3 x audio jacks
Display Port (s) 1 x DisplayPort
HDMI 1 x HDMI port
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s) Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
Wireless Communication module Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Warranty Information
Manufacturing Warranty 03 years

Description

GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard

The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard is built for gamers, creators, and professionals seeking rock-solid performance, future-ready features, and exceptional thermal control. Supporting 14th, 13th, and 12th Gen Intel Core processors via the LGA1700 socket, this high-end Intel motherboard is the perfect foundation for a modern desktop PC.

Experience blazing-fast system responsiveness with support for up to 192GB of dual-channel DDR5 memory, reaching speeds of up to 7600 MHz (OC) via four DIMM slots. The board’s Twin 12+1+1 Phases Digital VRM Solution* ensures stable power delivery under heavy loads, making it perfect for intensive gaming, 3D rendering, or streaming workflows.

The GIGABYTE Z790 EAGLE AX features three PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSD storage, backed by M.2 Thermal Guard technology to prevent thermal throttling. The PCIe 5.0 x16 EZ-Latch slot allows quick, tool-less GPU installation and upgrades.

For network performance, it includes Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, ensuring lightning-fast wired and wireless connectivity. Onboard display options include both HDMI and DisplayPort, while the rear USB-C 10Gb/s port supports high-speed external devices.

Smart Fan 6 with multiple temperature sensors and hybrid fan headers ensures your system stays cool and quiet with FAN STOP technology for low-load scenarios. Updating the BIOS is hassle-free with Q-Flash Plus, allowing updates without a CPU, memory, or GPU installed.

If you're building a next-gen system with Intel's latest CPUs, the GIGABYTE Z790 EAGLE AX DDR5 Motherboard delivers unbeatable power, advanced cooling, rich connectivity, and seamless expansion—available now at SkylandBD for your high-performance computing needs.
