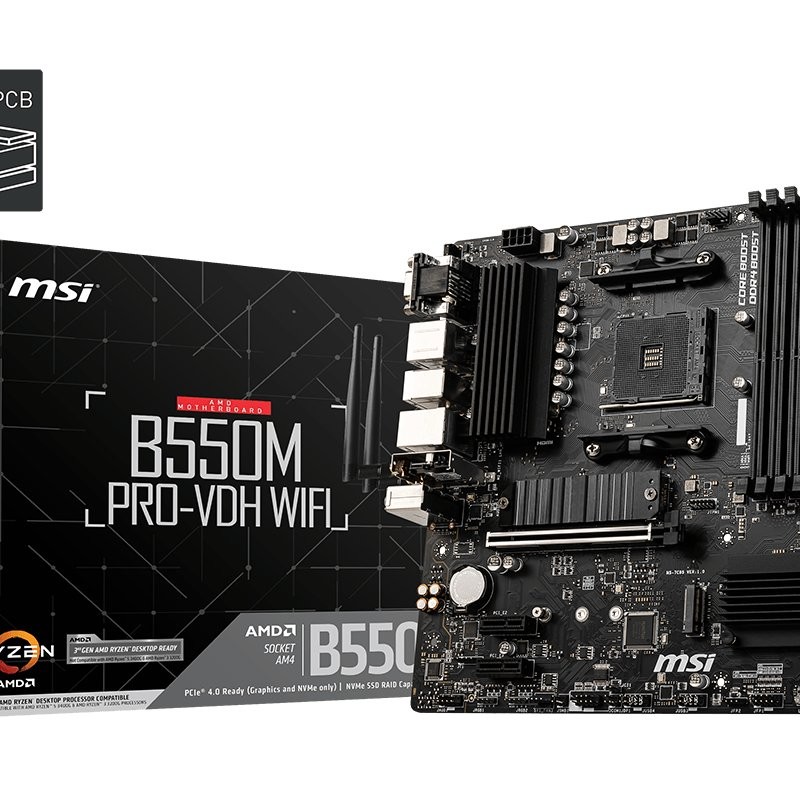

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
Save: 1,350৳
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard
0 reviews • Write a review
  • Offer Price: 15,900৳
  • Regular Price: 17,250৳
  • Stock: In Stock
  • Brand: MSI
  • Model: MSI B550M Pro-VDH WiFi

Key Features

  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • M.2 SHIELD FROZR
  • Supports DDR4 4400+ (OC)
  • PCB with 2OZ Thickened Copper

Payment Options

15,900৳17,250৳

Cash Discount Price

Online / Cash Payment
17,250৳/month

Regular Price: 17,250৳

up to 36 months EMI***
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Specifications

Expansion Slots
M.2 Socket 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
General
Brand MSI
Model MSI B550M Pro-VDH WiFi
Graphics
Graphics 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory 16GB
Memory
Maximum Memory 128GB
Slots 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Type Dual-channel memory architecture
Others
Special Features WIRELESS LAN & BLUETOOTH: Intel Dual Band Wireless-AC 3168- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Ports & Connector
Display Port (s) 1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
HDMI 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
LAN Port (s) 1x Realtek 8111HN Gigabit LAN controller
Supported Storage AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module) 1 x TPM module connector
USB (s) AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Basic Information
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Chipset AMD B550
Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Warranty Information
Manufacturing Warranty 03 Years Warranty

Description

MSI B550M Pro-VDH Wi-Fi AM4 AMD Micro-ATX Motherboard

The MSI B550M Pro-VDH Wi-Fi Motherboard is a powerful and reliable Micro-ATX AMD motherboard engineered for productivity, efficiency, and stability. Built on the AMD B550 chipset, it supports 3rd Gen AMD Ryzen™ processors and is ready for Ryzen 5000 Series CPUs on the AM4 socket. With a compact form factor and advanced thermal design, this board is ideal for compact high-performance systems, whether you're building a workstation or a home gaming PC.

Built for Power and Thermal Efficiency

  • Socket: AM4

  • Chipset: AMD B550

  • CPU Support: Ryzen 3000, Ryzen 5000 Series (except Ryzen 3200G/3400G)

  • Power Delivery: 10-phase digital VRM with Doubler Design

  • Heatsink: Extended PWM heatsink + 7W/mK thermal pads

  • M.2 Cooling: Integrated M.2 Shield Frozr for SSD temperature control

Engineered with an enhanced PCB (2oz thickened copper) for increased conductivity and heat dissipation, the B550M Pro-VDH ensures stable performance and reliability even under overclocked conditions.

High-Speed Connectivity & Storage

  • Expansion Slots:

    • PCIe 4.0 x16 (Lightning Gen 4)

    • PCIe 3.0 x1

  • Storage Options:

    • 1x Lightning Gen 4 x4 M.2

    • 4x SATA III 6Gb/s ports

Lightning Gen 4 M.2 slots offer up to 64Gb/s transfer speeds, making it the fastest onboard storage solution in its class—ideal for fast boot and load times in gaming and content creation.

Integrated Wi-Fi & Networking

  • Wi-Fi: Built-in Wi-Fi 5 (802.11ac)

  • LAN: Gigabit Ethernet for reliable wired networking

  • Audio: Studio-grade Audio Boost for immersive sound quality

Whether streaming, gaming, or remote working, you get stable, high-speed wireless and wired connectivity without the need for additional network cards.

Advanced Cooling & Fan Control

  • Total Fan Control with 4 temperature target zones

  • Support for All-In-One (AIO) and custom water cooling

  • Dedicated water pump header (up to 3A)

  • “Keep-out zone” marked for safe cooler installations

Optimized for Gaming and Multitasking

  • Memory Support: DDR4 up to 128GB, speeds up to 4400+ MHz (OC)

  • A-XMP Support: Easily enable XMP profiles for max performance

  • Steel Armor PCIe Slot: Protects GPU from sag and EMI

  • Dragon Center Software: Central hub for system tuning and monitoring



Ideal For:

Budget gaming builds
Office and productivity PCs
High-speed Wi-Fi-enabled systems
Content creation on a compact platform

Conclusion:
The MSI B550M Pro-VDH Wi-Fi Motherboard strikes a perfect balance between affordability, stability, and advanced features—making it an ideal motherboard for those seeking a reliable AMD B550 platform in a compact Micro-ATX form.
